The printing industry encompasses a range of processes where potential quality issues may arise. Employing 100% quality testing equipment during the printing process is an efficient method to guarantee print quality, save costs, and enhance production capacity. With decades of experience in the field of printing inspection, Daheng image has introduced a range of ready-to-use printing inspection systems and machines tailored for various processes. These products enable users to monitor the quality of diverse printed products in real-time, promptly identify and annotate defects, and offer result analysis tools to facilitate process improvement for our users.
Products Overview
SAMPO-SAMPLE PRINT INSPECTION AND PROOFING MACHINE
Introduction：
Sampo is a print quality inspection and proofing machine, normally used to check the quality of CTP press plate, first print before mass printing and sampling inspection during printing. It is suitable to inspect a variety of materials like C/ M/Y/K press plates, printed sheets, leaflets and booklets for industries of pharmaceuticals, cigarettes, consumer goods packaging, and so forth.
Feature：
1. Three steps to set up: scan production sample, load PDF template, and inspect the sample
2. Software supports to identify and separate printed and non-printed la yers in PDF file
3. Optical resolution is up to 0.036mm/pixel (708DPI), inspection accuracy is up to 0.1mm×0.1mm
4. Software can generate the inspection report in PDF format
5. Multi-master function allows to inspect the sheet with different ups at the same time
VENUS –UNIFIED VACUUM PRINT INSPECTION MACHINE FOR FOLDING CARTONS
Introduction：
Venus, as the 6 generation inspection machine, introduces all new unified vacuum belt design to inspect the print quality of pharmaceutical, cosmetic, food, daily consuming, and FMCG cartons, etc. It is capable to inspect the quality of foil stamping, embossing, varnishing, lamination, hologram, variable code, and braille, etc.
Feature：
1. Our new technology eliminates the need for vacuum suction to reduce power consumption, heat, and noise
2. Fully automated and user-friendly software enable quick setups in minutes
3. Qualitative breakthrough by integration of AI technology (artificial intelligence) for delicate inspection, such as subtle text defects
4. Multi-master feature to inspect the folding carton products with varying images in specified region
5. Diagnostic doctor software monitors the overall system performance and stability by evaluating light, camera, computer, sensor, etc
6. Statistic feature generates an inspection report in PDF per each job
STAR-PRINT INSPECTION MACHINE FOR FOLDING CARTONS
Introduction：
Star is one series of offline inspection machine commonly used to inspect the print quality of cigarette blanks, pharmaceutical, cosmetic, food, daily consuming, and FMCG cartons, tags, labels, and corrugated board, etc. It is able to inspect the quality of foil stamping, embossing, varnishing, lamination, hologram, braille, and variable code, etc.
Feature：
1. Our new technology eliminates the need for vacuum suction to reduce power consumption, heat, and noise
2. First in the industry to introduce 5K high resolution camera
3. Multi-spectral camera technology for precise color variance measurement
4. Fully automated and user-friendly software enable quick setups in minutes
5. Multi-master feature to inspect the folding carton products with varying images in specified region
6. Diagnostic doctor software monitors the overall system performance and stability by evaluating light, camera, computer, sensor, etc
7. Statistic feature generates an inspection report in PDF per each job
NOVAVISION-PRINT INSPECTION MACHINE INLINE TO FOLDER-GLUER
Introduction：
NovaVision is the latest innovation from Imavision for in-line inspection. The efficient and compact unit is easily retro fitted to most folder gluer machines to perform 100% inspection of folding cartons. Camera inspection for print quality and color, foil stamping, embossing, varnishing, lamination, backside inspection, Braille and variable code, etc.
Feature：
1. Compatible carton feeding design for seamless connection with existing folder-gluer
2. Exclusive carton rejection design ensures no damage to rejected cartons
3. Compact footprint takes minimal floor space for high quality inspection
4. Our new technology eliminates the need for vacuum suction to reduce power consumption, heat, and noise
5. Fully automated and user-friendly software enable quick setups in minutes
6. Diagnostic doctor software monitors the overall system performance and stability by evaluating light, camera, computer, sensor, etc
7. Statistic feature generates an inspection report in PDF per each job
8. Option: Variable data inspection and verification; Back-side inspection; Braille inspection

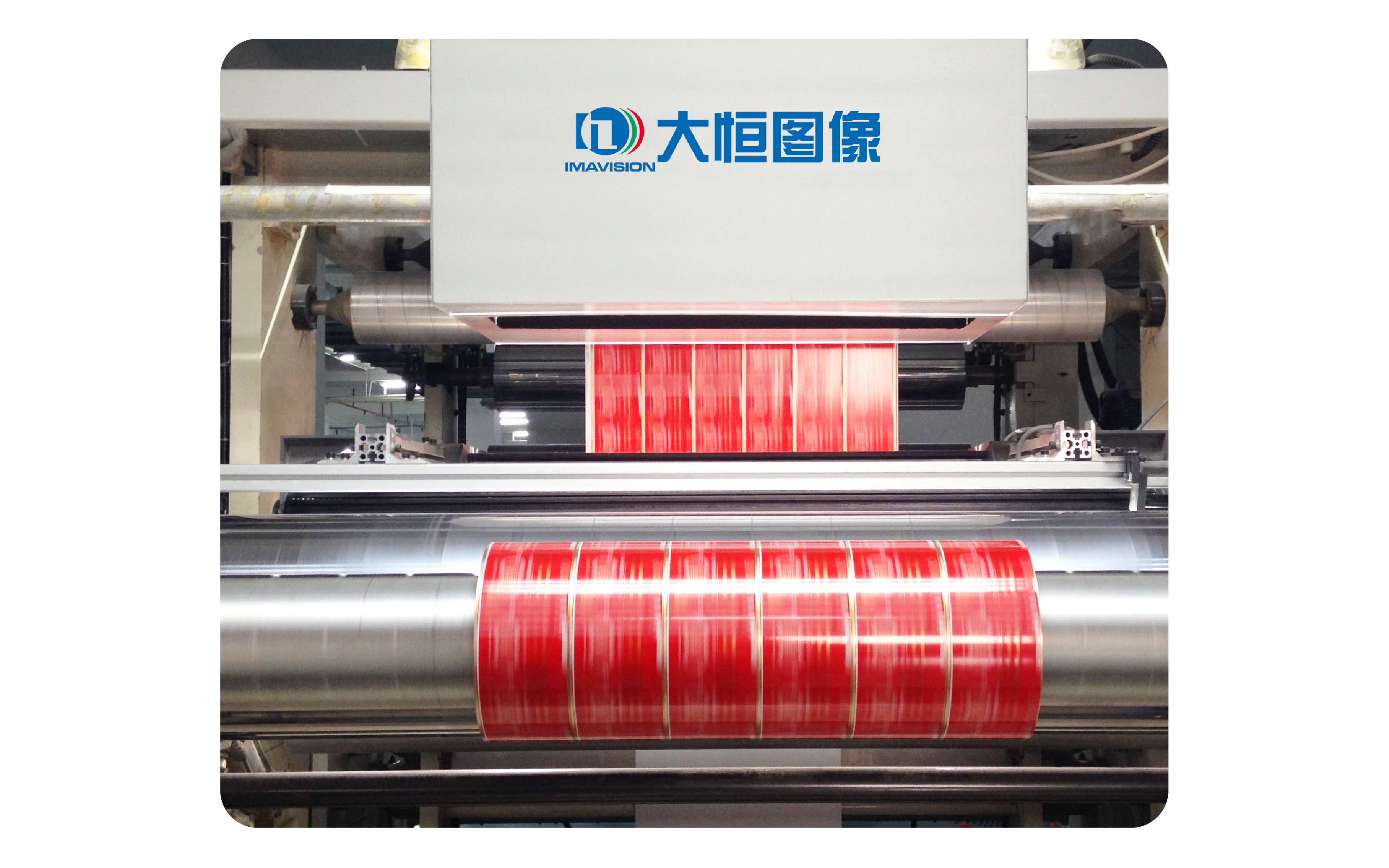

REELLER-PRINT INSPECTION SLITTING & REWINDING MACHINE
Introduction：
Reeller, narrow-web print inspection slitting & rewinding machine, is used to inspect a variety of rotary cigarette, pharmaceutical, cosmetic, food, daily consuming, and FMCG labels and packages and able to slit into multiple rolls after inspection.
Feature：
1. Support for setting up master within 3~5 min for quick inspection
2. Organized interface displays defect in accordance with label inspection feature and operation habit
3. Support for inspecting the print defects, and multiple variable data at the same time
4. Various defect handling methods: sound and light alert, machine stop as standard and defect review machine as option
5. Support to store inspection record into database in real time for traceability afterwards
